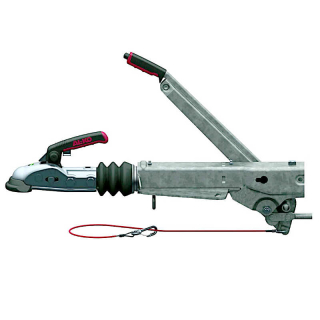

161 S 950kg - 1600kg, wheel brake: 2361
Complete AL-KO Kober 161 S overrun brake for below installation up to 1600 kg.
Features: b> Weight range: GA 950-1600 kg Support load max. 100 kgInstallation dimensions (hole pattern): rear (A) 166-217 mm - front (B) 120 mm - distance (C ) 166 mm - Ø13 mm Coordinated with AL-KO wheel brake type 2361
Brake rod connection: M10
The assembly takes place from below on the V-drawbar
The AL-KO Kober 161 S is suitable for all wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
Replacement for 249217
