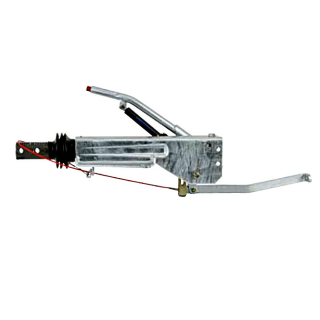

DIN towing eye GG 2.8 VB / 1C
Complete overrun brake AL-KO 2, 8VB GG 2.8 VB / 1C with DIN towing eye for top installation up to 3500 kg.
Properties: Weight range: GA 2500 - 3500 kg Installation dimensions (hole pattern): Back (A) 225 - 255 mm - Front (B) 135 mm - Distance (C) 186 mm - Ø13 mm Coordinated with AL-KO wheel brakes type 2051 and 2361
Brake linkage connection: M12
Installation is from above on the V-drawbar
The AL-KO Kober 2.8 VB / 1C with DIN towing eye is suitable for all Knott wheel brakes, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
Old item number: 240 168
