Knott K 7.5 Ausf. D Drawbar around 60 mm

Knott K 7.5 Ausf. D Drawbar around 60 mm

Knott K 7.5 Ausf. D Drawbar around 60 mm

Knott K 7.5 Ausf. D Drawbar around 60 mm

SKU: 6E0083.029
Category: up to 750 kg
Manufacturers: KNOTT

K 7.5 version D

NZ$ 86,76

incl. 0% VAT , plus

Delivery time: 1 - 8 Workdays Other countries

Description
Question about item

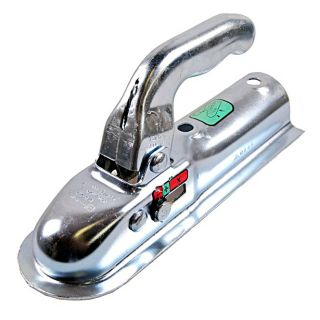

Knott K 7.5 version D for drawbar around 60 mm

Knott ball coupling, sheet steel version for trailers up to 750 kg permissible axle load up to 75 kg permissible vertical load at the coupling point

D- / Dc-value 7.2kN, EG approval 00-1062e1

for round drawtube diameter A = 60mm
fastening hole spacing D = 90 mm vertical screwing
fastening screws M12, B = 12, 5 mm
F = 16 mm
G = 229 mm

Shipping weight:	1,50 kg
