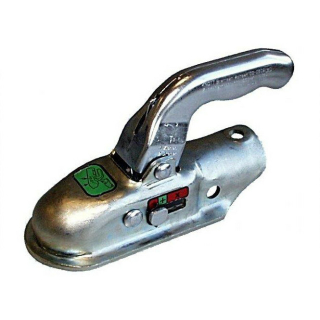

KK 14 version B
Knott ball coupling, sheet steel version for trailers up to 1400 kg permissible axle load up to 100 kg permissible vertical load at the coupling point
D- / Dc value 13.2kN, EC approval e1 00 - 0505
for draw tube diameter A = 45 mm Fixing hole spacing D = 40 mm Fixing screws M12, B = 12.5 mm C = 12.5 mm F = 17 mm G = 171 mm
