161 S below installation, ETI No.: 811028

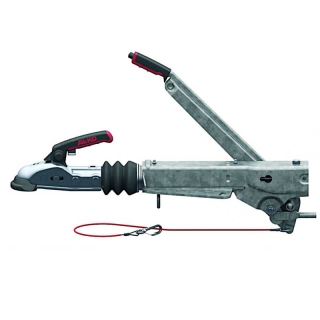

Complete overrun brake AL-KO Kober 161 SA for below installation up to 1600 kg.
Features:Weight range: GA 950-1600 kg Support load max. 100 kgHole pattern: rear (A) 166-217 mm - front (B) 120 mm - distance (C) 166 mm - Ø13 mmcan be combined with AL-KO wheel brakes type 1637 and 2051
Brake rod connection: M10
The assembly takes place from below on the V-drawbar
EC test No.: 361-284-83, e1 00-0229
ETI No.: 811028
The AL- KO Kober 161 S is suitable for all wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
Replacement for 249214
