161 SA 950kg - 1600kg, wheel brake: 1637/2051

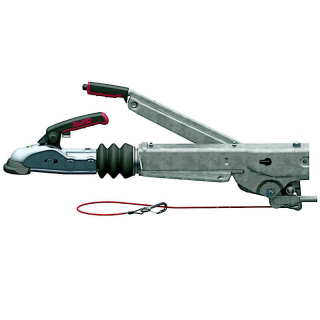

Complete overrun brake AL-KO Kober 161 SA for above installation up to 1600 kg.
Features:Weight range: GA 950-1600 kgSupport load max. 100 kgInstallation dimensions (hole pattern): rear (A) 166-217 mm - front (B) 120 mm - distance (C) 166 mm - Ø13 mmCoordinated with AL-KO wheel brake type 1637/2051
Brake rod connection: M10
The assembly takes place from above on the V-drawbar
The AL-KO Kober 161 SA is suitable for all wheel brakes from Knott, ALKO and Schlegl. Not suitable for Peitz (PAV) wheel brakes.
EG Pr Nr 361-284-83, 00-0229, 811027
Replacement for 247661
