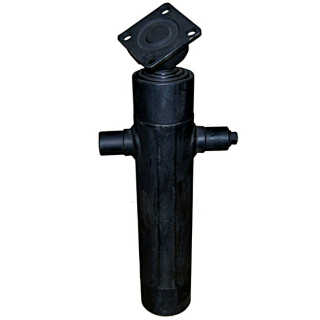

Telescopic cylinder, stroke 1030 mm, 4-stage, height 512 mm, pin 40 mm

Telescopic cylinder, stroke 1030 mm, 4-stage, height 512 mm, pin 40 mm

SKU: 3920432
Category: Tipper accessories Chapel
Manufacturers: Chapel Hydraulique

Telescopic cylinder stroke 1030 mm

NZ$ 1526,28

incl. 0% VAT , plus

Delivery time: 1 - 8 Workdays Other countries

Description
Question about item

Telescopic cylinder 3397 PN, stroke 1030 mm, 3-stage, 45/61/76 mm, height 512 mm, 200 bar, pin d = 40 mm, ball socket 95 x 95 mm, connection ½ inch

Telescopic cylinder type 3397
3-stage 45/61/76 mm, stroke 1030 mm,
height 512 mm, 200 bar,
with ball socket 95 x 95 mm, connection 1/2 inch
Reference numbers: 3397

PDF

Explosionszeichnung

Hier können Sie die Explosionszeichnung für die Hydraulik Teleskopzylinder herunterladen und mit der Vergleichsnummer vergleichen.

PDF

Explosionszeichnung

Shipping weight:	23,85 kg
