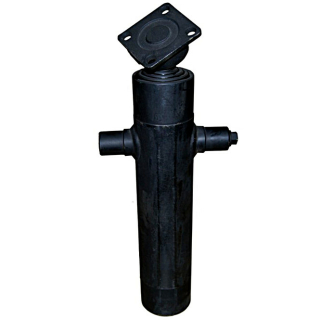

Telescopic cylinder stroke 1150 mm, 5-stage, construction height 406, pin 45 mm

Telescopic cylinder stroke 1150 mm, 5-stage, construction height 406, pin 45 mm

SKU: 3920436
Category: Tipper accessories Chapel
Manufacturers: Chapel Hydraulique

Telescopic cylinder stroke 1150 mm

NZ$ 1996,37

incl. 0% VAT , plus

Delivery time: 1 - 8 Workdays Other countries

Description
Question about item

Telescopic cylinder 3595 PN, stroke 1150 mm, 5-stage, 45/61/76/91/107 mm, construction height 406, 200 bar, spigot d = 45 mm, ball socket 95 x 95 mm, connection ½ inch

Telescopic cylinder type 3595
5-stage 45/61/76/91/107 mm, stroke 1150 mm,
height 406 mm, 200 bar,
with ball socket 95 x 95 mm, Connection 1/2 inch
Reference numbers: 3595

PDF

Explosionszeichnung

Hier können Sie die Explosionszeichnung für die Hydraulik Teleskopzylinder herunterladen und mit der Vergleichsnummer vergleichen.

PDF

Explosionszeichnung

Shipping weight:	30,50 kg
