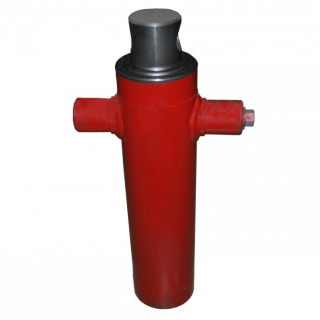

Telescopic cylinder stroke 595 mm, 2-stage, construction height 461 mm, pin 45 mm

Telescopic cylinder stroke 595 mm, 2-stage, construction height 461 mm, pin 45 mm

SKU: 3920413
Category: Tipper accessories Chapel
Manufacturers: Chapel Hydraulique

Telescopic cylinder stroke 595 mm

NZ$ 919,08

incl. 0% VAT , plus

Delivery time: 1 - 8 Workdays Other countries

Description
Question about item

Telescopic cylinder 201 H, stroke 595 mm, 2-stage 61/76 mm, construction height 461 mm, 200 bar, pin 45 mm, connection ½ inch

Telescopic cylinder type 201
2-stage 61/76 mm, stroke 595 mm,
height 464 mm, 200 bar,
with pin d = 45 mm, connection 1/2 inch
Reference numbers: 201

PDF

Explosionszeichnung

Hier können Sie die Explosionszeichnung für die Hydraulik Teleskopzylinder herunterladen und mit der Vergleichsnummer vergleichen.

PDF

Explosionszeichnung

Shipping weight:	22,02 kg
